EM Vortex

The device is designed for contactless vortex creation in liquid metal for loading particles of varying conductivity, density, shape, and size. This device effectively remelts small metal scraps.

The melt rotational motion is generated by the magnetic field of an arc induction machine. The special inner surface shape of the loading chamber causes the melt to move along a helical trajectory.

The main advantage is the closed channels absence, which are prone to clogging and destruction. Mass transfer from the loading chamber to the main furnace volume occurs through a single, flat, semi-open channel. This design significantly simplifies maintenance and eliminates the need for furnace shutdowns.

Patent RU 2 677 549 C2 - Method for remelting metal waste and a furnace for implementing it. Published January 17, 2019 (Applied July 25, 2016)

Работа в составе плавильной печи

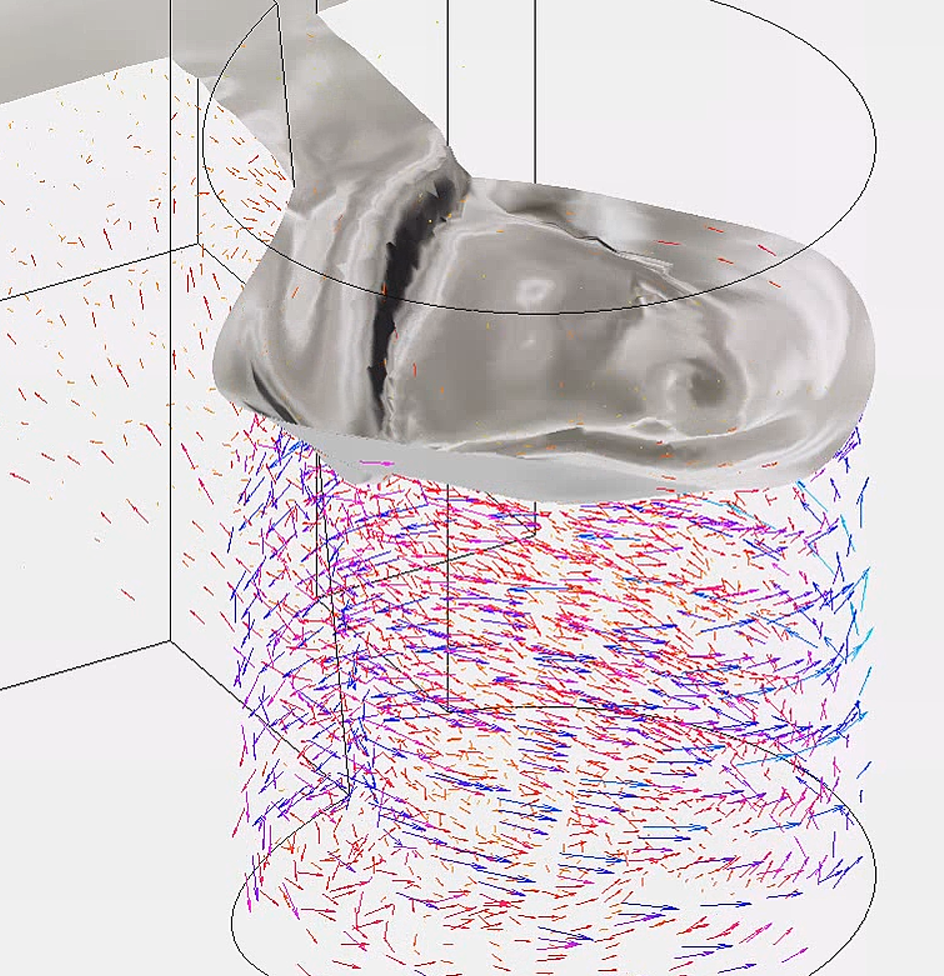

Численное моделирование образования жидкометаллической воронки

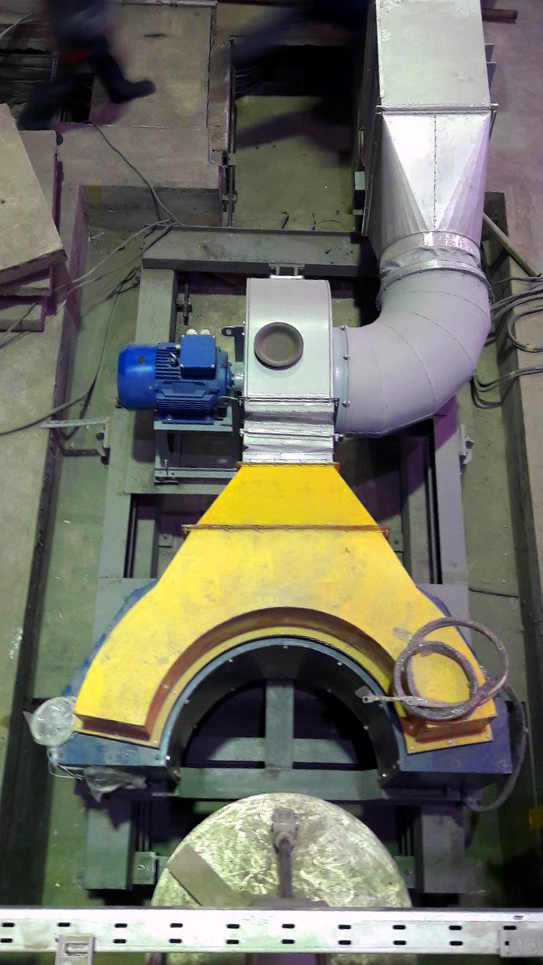

Оборудование на плавильной печи
