MHD launder stirrer
MHD launder stirrer

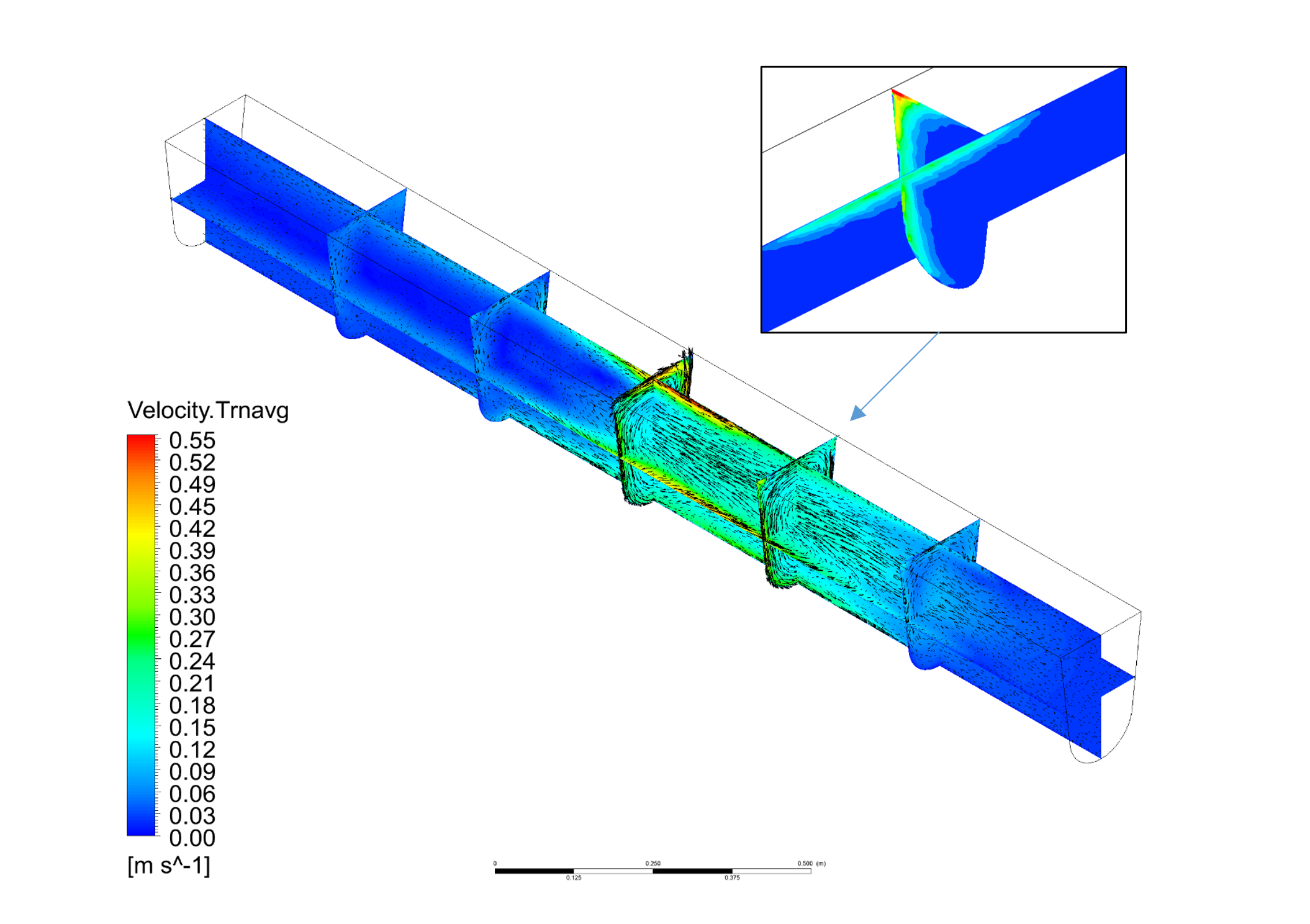

A set of equipment for providing electromagnetic stirring in the melt flow in the casting trough.
Ensures the melt homogenization before feeding it into the casting machine and stimulates the introduced components dissolution (AlTiB ligature rod).
Can be installed at any point on the casting line.
All characteristics
- Three-phase power supply 380 V
- Power 500-3000 W
- Overall dimensions: 500 x 400 x 100 mm (per side)
- Total weight 500 kg (assembled with tray)
- Stirring modes 4 modes with controlled intensity
- Forced air cooling
